Slim, lightweight and robust OLED monitor ideal for 4K production, shopping channels, field and graphics applications, as well as OB vans

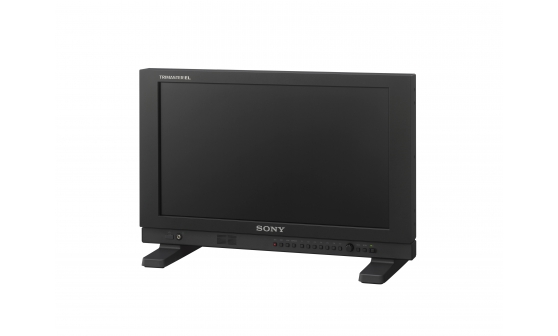

The PVM-A170 17-inch, Full HD monitor achieves the industry-leading lightweight and shallow body*, with a approximately 40 per cent reduction compared to the previous PVM-1741A model. It is easy to carry, even by one person. The PVM-A170 incorporates the TRIMASTER EL™ OLED panel and offers the industry’s widest viewing angles of any professional flat-panel monitor on the market, making group monitoring easy. The stylish new design also includes a, robust, optional protection panel and corner bumpers**. The latest camera-linkage functions, such as camera and lens metadata display and a Picture and Picture function, provide the convenience of working efficiency both in the field and in the post process. Version 2.0 of the PVM-A170 expands and enhances the monitor’s ability to support 4K production, shopping channels, field and graphics applications.
* Comparing professional broadcast monitors incorporating SDI interface(s) and built-in AC power.
** Requires optional BKM-PP17 protection kit.
* Comparing professional broadcast monitors incorporating SDI interface(s) and built-in AC power.
** Requires optional BKM-PP17 protection kit.
Panel
OLED panel
Picture Size (Diagonal)
419.7 mm (16 1/2 inches)
Effective Picture Size (H x V)
365.8 x 205.7 mm (14 1/2 x 8 1/8 inches)
Resolution (H x V)
1920 x 1080 pixels (Full HD)
Aspect
16:9
Panel Drive
RGB 10-bit
Viewing Angle (Panel Specification)
89°/89°/89°/89° (typical) (up/down/left/right contrast > 10:1)
Composite Input
BNC (x1), 1.0 Vp-p ±3dB sync negative
SDI
Input BNC (x2)
HDMI Input
HDMI (x1) (HDCP correspondence)
Audio Input
Stereo mini jack (x1), -5 dBu 47 kΩ or higher
Parallel Remote
RJ-45 modular connector 8-pin (x1) (Pin-assignable)
Serial Remote (LAN)
RJ-45 modular connector (x1) (Ethernet, 10BASE-T/100BASE-TX)
DC Input
XLR-type 4-pin (male) (x1) DC 12 V to 16 V (output impedance 0.05 Ω or less)
Composite Output
BNC (x1), Loop-through, with 75 Ω automatic termination
SDI Output
BNC (x2)
Output signal amplitude: 800 mVp-p ±10%
Output impedance: 75 Ω unbalanced
Output signal amplitude: 800 mVp-p ±10%
Output impedance: 75 Ω unbalanced
Audio Monitor Output
Stereo mini jack (x1)
Speaker (Built-in) Output
1.0 W (mono)
Headphone Output
Stereo mini jack (x1)
Power Requirements
AC 100 V to 240 V, 0.9 A to 0.5 A, 50/60 Hz DC 12 V to 16 V, 6.4 A to 4.8 A
Power Consumption
Approx. 75 W (AC power supply) (max.)
Approx. 60 W (AC power supply) (average power consumption in the default status)
Approx. 60 W (AC power supply) (average power consumption in the default status)
Operating Temperature
0°C to 35°C (32°F to 95°F)
Recommended: 20°C to 30°C (68°F to 86°F)
Recommended: 20°C to 30°C (68°F to 86°F)
Operating Humidity
30% to 85% (no condensation)
Storage / Transport Temperature
-20°C to +60°C (-4°F to +140°F)
Storage / Transport Humidity
0% to 90%
Operating / Storage / Transport Pressure
700 hPa to 1060 hPa
Dimensions (W x H x D)
435.0 x 274.0 x 65.5 mm* (17 1/4 x 10 7/8 x 2 5/8 inches) (without monitor feet)
435.0 x 296.5 x 165.0 mm (17 1/4 x 11 3/4 x 6 1/2 inches) (with monitor feet)
435.0 x 296.5 x 165.0 mm (17 1/4 x 11 3/4 x 6 1/2 inches) (with monitor feet)
Mass
Approx. 4.2 kg (9 lb 4.2 oz)
Supplied Accessories
AC power cord (1),
AC plug holder (1),
Handle (1) (including 4 screws),
Before Using This Unit (1),
CD-ROM (1)
AC plug holder (1),
Handle (1) (including 4 screws),
Before Using This Unit (1),
CD-ROM (1)
Optional Accessories
SU-561 Monitor Stand,
MB-P17 Mounting bracket,
BKM-PP17 Protection kit
MB-P17 Mounting bracket,
BKM-PP17 Protection kit
*Without projection parts.
